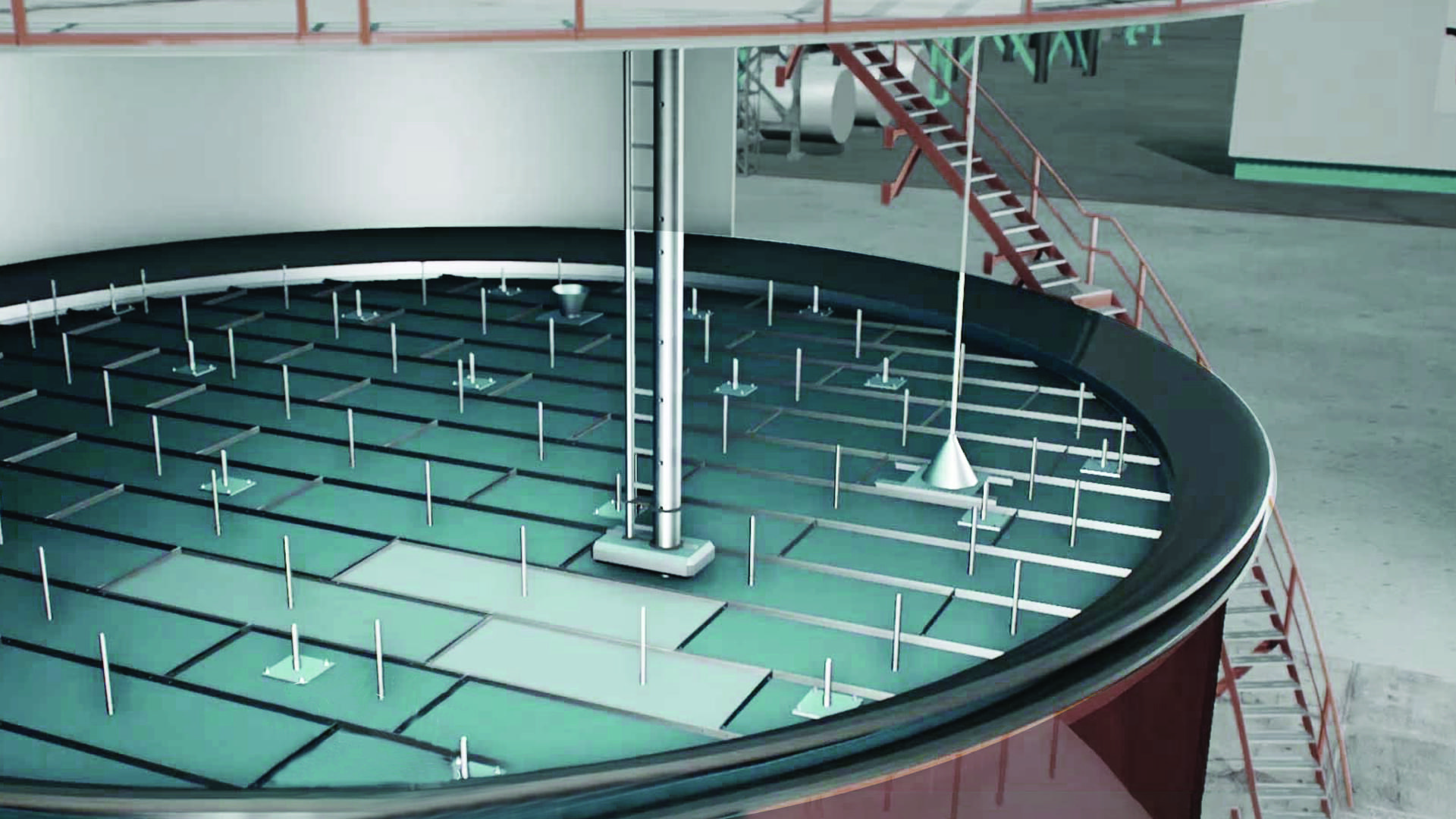

A mechanical seal system is a critical component in oil storage tanks, especially those with floating roofs. It prevents the leakage of volatile organic compounds (VOCs) into the atmosphere, reducing environmental impact and improving safety.
How Does a Mechanical Seal System Work?
A typical mechanical seal system for an oil storage tank consists of the following components:
- Primary Seal: This is the main sealing element, usually made of a flexible material like PTFE or elastomer. It creates a tight seal between the floating roof and the tank wall.
- Secondary Seal: This is a backup seal that provides additional protection against leaks. It is often made of a more rigid material like metal.
- Seal Carrier: This component supports the primary and secondary seals and ensures their proper alignment.
- Weight System: This system applies the necessary pressure to the seals, maintaining a tight seal even under varying conditions.
Types of Mechanical Seal Systems
- Pantograph Seal: This type of seal uses a pantograph mechanism to maintain contact with the tank wall as the floating roof moves up and down.
- Spring-Loaded Seal: This seal uses springs to apply constant pressure to the sealing elements.
- Hydraulic Seal: This seal uses hydraulic pressure to maintain the seal.
Factors to Consider When Selecting a Mechanical Seal System
- Tank Size and Shape: The size and shape of the tank will determine the type and size of the seal system required.
- Fluid Properties: The properties of the stored fluid, such as viscosity and corrosiveness, will influence the choice of materials for the seals.
- Environmental Regulations: Compliance with local and international environmental regulations is crucial.
- Maintenance Requirements: The ease of maintenance and replacement of the seals should be considered.
- Cost: The initial cost and ongoing maintenance costs of the seal system should be balanced against its benefits.
Importance of Regular Maintenance
Regular inspection and maintenance of mechanical seal systems are essential to ensure their continued effectiveness. This includes:
- Visual Inspection: Checking for signs of wear, damage, or corrosion.
- Seal Replacement: Replacing worn-out seals as needed.
- Lubrication: Applying appropriate lubricants to moving parts.
- Cleaning: Removing debris and contaminants from the seal system.
By properly selecting, installing, and maintaining a mechanical seal system, you can significantly reduce emissions, improve safety, and extend the life of your oil storage tank.
