INTERNAL FLOATING ROOF (IFR)
Internal Floating Roof Tanks Environmental and Economic Benefits
Economic value of oil and gas volatilization reduced by internal floating roof tank equals installation and procurement costs within 3-6 months. Suitable for various tank types, doesn’t pollute oil products or chemicals, reduces volatilization loss, prevents air pollution.
Internal Floating Roof is Ideal for its low cost, short construction period, corrosion resistance, space-saving, and long service life.
KEY BENEFITS
- Reduced Evaporation Losses: Minimize product loss and environmental impact.
- Enhanced Safety: Reduces fire and explosion risks by limiting vapor space.
- Improved Product Quality: Preserves product purity by preventing contamination from atmospheric elements.
- Lower Operating Costs: Reduces maintenance and energy consumption.

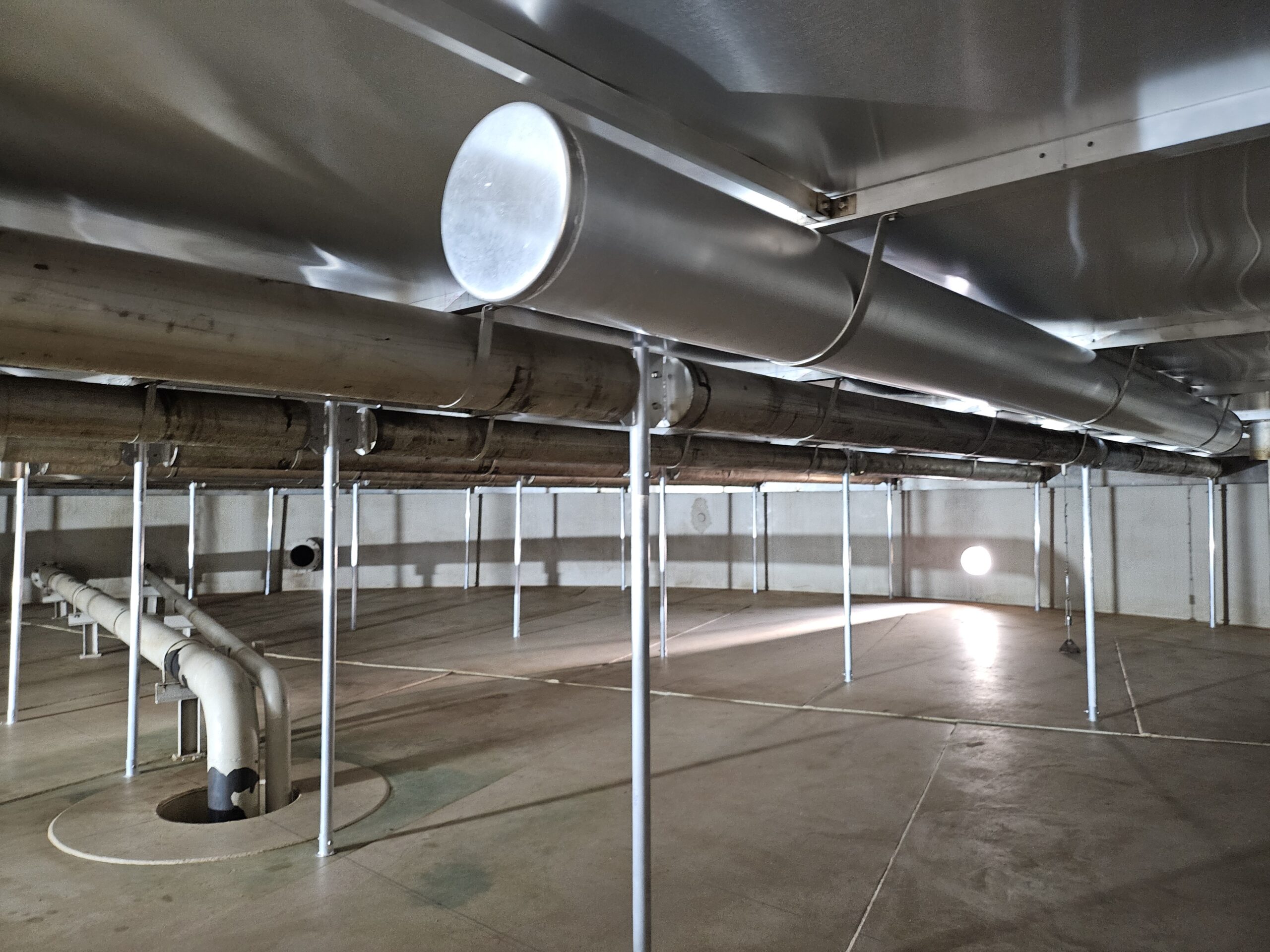

OVERVIEW OF OUR INTERNAL FLOATING ROOF
01. PONTOON TUBE
02. SUPPORTING LEG
03. DECK SKIN
04. RIM PROFILE
05. UPPER & LOWER BEAMS
06. PRESSURE VACCUM VENT
07. VACUUM BREAKER
08. MANHOLE
09. INLET DIFFUSER
10. COLUMN WELL
11. WIPER SEAL
12. ANTI ROTATION CABLE
13. EARTHING CABLE
14. STUB DRAIN
15. SS DRAWBAR SPRING
15A. MS HOOK
WHY CHOOSE GREENDECK INTERNAL FLOATING ROOF?
ECO-FRIENDLY DESIGN WITH EXCEPTIONAL QUALITY
ADVANCED SEALING SYSTEM WITH ADVANCED TECHNOLOGY
WIDE RANGE OF STORAGE APPLICATION
HIGH EFFICIENCY ON VAPOUR LOSS PREVENTION
Types of Seal Systems
-Single Wiper Seal
-Double Wiper Seal
-Foam Seal
-Mechanical Shoe Seal
The VAPOR MOUNTED SINGLE WIPER SEAL is engineered to prevent vapor leakage and safeguard against potential VOC and vapor loss. Utilizes a standard seal design known as SINGLE WIPER SEAL.
Material Composition:
Crafted from elastic synthetic rubber and special polyethylene materials.
Designed to provide effective sealing, reducing the risk of vapor-related issues in the application.
The VAPOR-MOUNTED DOUBLE WIPER SEAL incorporates double sealing system technology. Utilizes elastic synthetic rubber products/polyethylene material for effective sealing.
Standard Design:
The standard DOUBLE WIPER SEAL design is crafted from high-quality elastic synthetic rubber/polyethylene material.
Sealing Efficiency:
Engineered to provide reliable sealing, reducing the risk of vapor loss in the application.
The use of elastic synthetic rubber enhances flexibility and adaptability for various sealing requirements.
Liquid-mounted foam seal designed for a comprehensive sealing system. Comprises a foam-filled section with various envelope materials for versatility.
Materials Used:
Teflon (PTFE) envelope materials available, ensuring an extended service life for tanks storing BTX and high aromatic content products.
Two layers of PTFE (Teflon) envelope used for enhanced reliability in sealing service life.
Application Specific:
Tailored for use in tanks with BTX and high aromatic content products.
Offers adaptability with different envelope materials for varied sealing requirements.
Reliable Sealing:
Utilizes PTFE (Teflon) materials to enhance reliability and longevity of seals on your tank.
Provides a complete solution for effective and durable sealing.
Specifically designed for extended service life without the need for repair or maintenance in oil companies and tank terminals. And Suitable for high aromatic service tanks like BTX and various petroleum storage tanks.
Materials Used:
Stainless steel 304 shoe plate and other durable materials utilized for steel components.
PTFE (Teflon) employed for continuous sealing, ensuring longevity.
Service Life:
Demonstrates an impressive service life exceeding thirty (30) years.
Reliable for prolonged use in demanding environments.
Versatility:
Adaptable to various liquid storage applications.
Offers alternative continuous seal materials to meet specific storage requirements.
